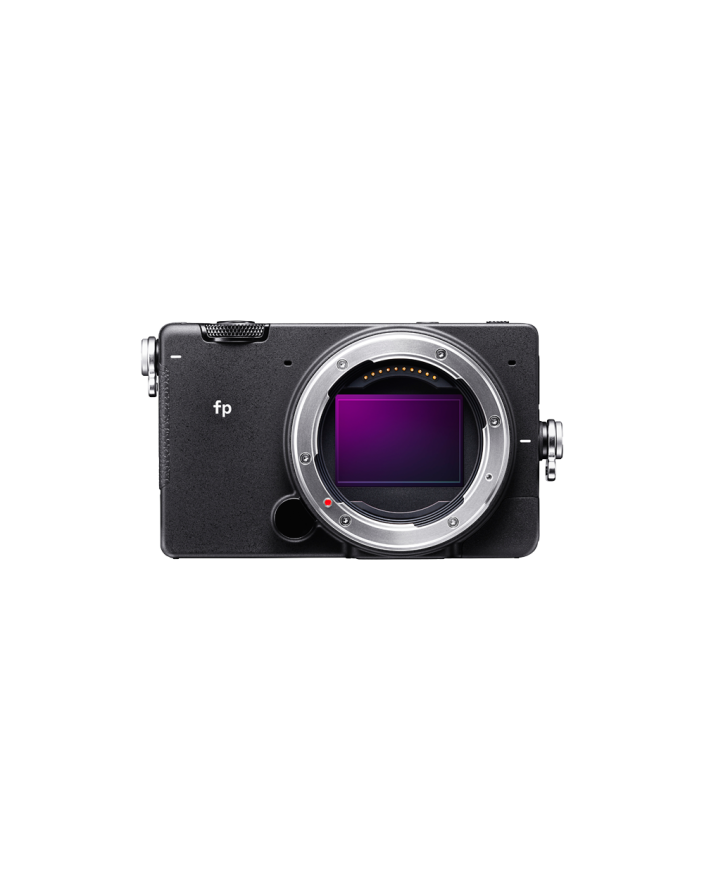

Sigma fp

Type

Interchangeable-lens Mirrorless Type Digital Camera

Memory Media

SD, SDHC, SDXC memory card (UHS-Ⅱ supported) , Portable SSD (USB 3.0 connection, USB bus power supported)

Color Filter System

RGB Primary color filter

Camera Effective Pixels / Total Pixels

Approx. 24.6 MP / Approx. 25.3 MP

Still Image File Format

Lossless compression RAW (DNG) data 12 bit,14 bit / JPEG (Exif2.3), RAW (DNG) + JPEG recording is possible

Image Aspect Ratio

[21:9] , [16:9] , [3:2] , [A Size (√2:1) ] , [4:3] , [7:6] , [1:1]

File Size RAW

HIGH: 6,000x4,000 (3,840x2,560)
LOW: 3,008x2,000 (1,920x1,280)

File Size JPEG

[21:9]
HIGH: 6,000x2,576 (3,840x1,648)
MED: 4,240x1,824 (2,736x1,168)
LOW: 3,008x1,288 (1,920x824)

[16:9]
HIGH: 6,000x3,376 (3,840x2,160)
MED: 4,240x2,392 (2,736x1,536)
LOW: 3,008x1,688 (1,920x1,080)

[3:2]
HIGH: 6,000x4,000 (3,840x2,560)
MED: 4,240x2,832 (2,736x1,824)
LOW: 3,008x2,000 (1,920x1,280)

[A Size (√2:1) ]
HIGH: 5,664x4,000 (3,616x2,560)
MED: 4,000x2,832 (2,560x1,824)
LOW: 2,832x2,000 (1,808x1,280)

[4:3]
HIGH: 5,344x4,000 (3,408x2,560)
MED: 3,776x2,832 (2,416x1,824)
LOW: 2,672x2,000 (1,712x1,280)

[7:6]
HIGH: 4,960x4,000 (3,184x2,560)
MED: 3,520x2,832 (2,272x1,824)
LOW: 2,480x2,000 (1,584x1,280)

[1:1]
HIGH: 4,000x4,000 (2,560x2,560)
MED: 2,832x2,832 (1,824x1,824)
LOW: 2,000x2,000 (1,280x1,280)

Crop

Lens Mount

Focus - AF System / Focus Mode

Contrast detection system, Single AF, Continuous AF (with moving object prediction function), Manual Focus

Focus - AF Sensitivity Range

-5 to 18 EV (F1.4:ISO 100) / Auto, 49-point selection mode, Free Move mode, Face/Eye Detection AF mode, Tracking AF mode

Focus - AF Lock

Half-press the shutter button, or press the AEL button (setting change required)

Focus - Other Focus Functions

AF+MF, MF Magnification (Full Screen, PIP), MF Display, Focus Peaking, Release Focus Function, AF-ON, Quick AF, Pre-AF, AF during Image Magnification, Focus Ring Control (Non-linear, Linear)

Exposure Control - Still Image Shooting Mode

(P) Program AE (Program Shift capable), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual

Exposure Control - Movie Shooting Mode

(P) Program AE, (S) Shutter Angle/Speed Priority AE, (A) Aperture Priority AE, (M) Manual

Exposure Control - ISO Sensitivity

Base ISO
[Still]
ISO 100,640
[Cine]
CinemaDNG 12 bit / HDMI RAW: ISO 100, 3200
MOV / CinemaDNG 10 bit, 8 bit, HDMI 4:2:2 8 bit: ISO 100, 640

Exposure Control - Exposure Compensation

±5 EV (in 1/3 stop increments): ±3 EV at movie recording

Exposure Control - AE Lock

Half-press the shutter button, or press the AEL button (setting change required)

Exposure Control - Exposure Bracket

3 shots, 5 shots stage exposure 3EV (1/3 Step, Standard→Underexposure→Overexposure) (Sequence changeable)

Image Stabilization System

Electronic system

Exposure Control - Metering Range

-5 to 18 EV (50mm F1.4:ISO 100)

White Balance

12 types
(Auto, Auto [Lighting Source Priority], Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash, Color Temperature [50K steps], Custom 1, Custom 2, Custom 3)

Shutter - Shutter Type

Electronic shutter

Shutter - Shutter Speed

30 to 1/8,000 sec., Bulb up to 300 sec.
* Up to 1/4,000 sec. when using electronic image stabilization

Drive - Drive Modes

Single Capture, Continuous, Self Timer, Interval Timer

Drive - Continuous Drive Speed

High Speed: approx. 18 shots/sec, Medium Speed: approx. 5 shots/sec, Low Speed: approx. 3 shots/sec.

Drive - Number of Recordable Frames

HIGH: 12 frames, MED: 12 frames, LOW: 24 frames

Color Mode

16 types
(Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Warm Gold, Teal and Orange, Sunset Red, Forest Green, Powder Blue, FOV Classic Blue, FOV Classic Yellow, Duotone, Monochrome, Off )

Other Functions

Save / Load Settings via QR code, Screenshot, Webcam, In-camera RAW development, Still image capture from recorded movie files, Cinemagraph, Fill Light, HDR shooting (Still, Cine), Still image shooting during movie shooting

Built-in Microphone / Speaker

Stereo Microphone, Monaural Speaker

Display Language

English / Japanese / German / French / Spanish / Italian / Simplified Chinese / Traditional Chinese / Korean / Russian / Dutch / Polish / Portuguese / Danish / Swedish / Norwegian / Finnish

Interface - HDMI Terminal

Type D (Ver.1.4)

Interface - Remote

Also used as an external microphone terminal

Interface - Timecode Input

Also used as an external microphone terminal

Interface - External Microphone Terminal

3.5mm stereo mini jack (Plug-in power support)

Interface - Headphone Output Terminal

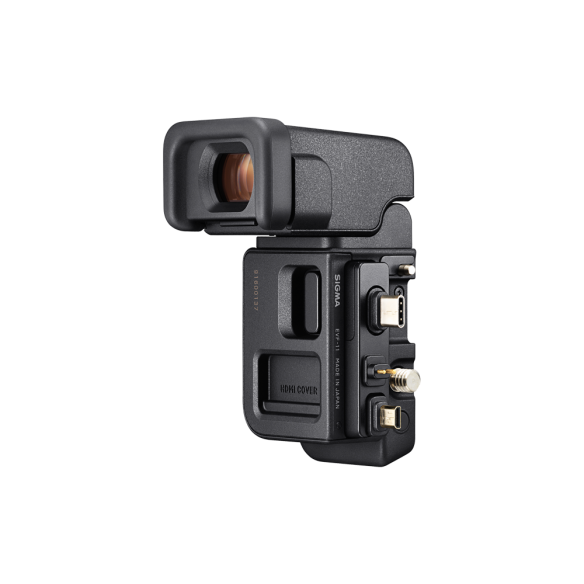

3.5mm stereo mini jack (can be connected when using the dedicated ELECTRONIC VIEWFINDER EVF-11)

Interface - Flash-synchro Terminal

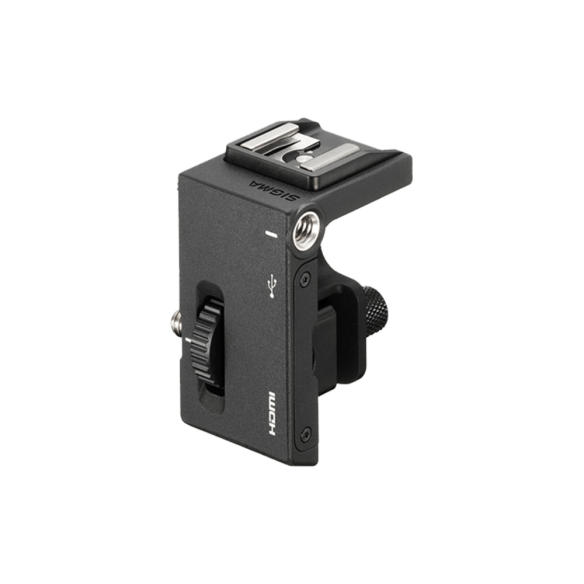

Dedicated terminal (with HOT SHOE UNIT HU-11 (supplied with this product) mounted)

Dust and Splash Resistant Structure*

Dust and Splash Resistant Structure provided
(*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof)

Power - Source

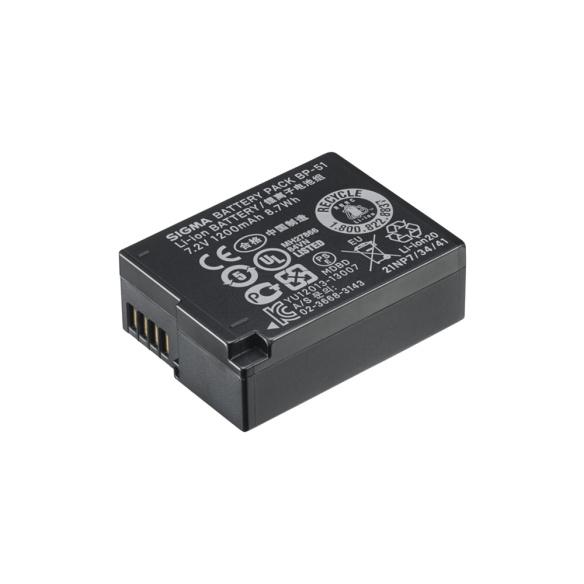

Li-ion Battery Pack BP-51

*Internal battery charge via USB terminal available.
(the camera can not be used while charging)

Power - Number of Recordable Still Images

Approx. 280 images

Power - Minutes of Recordable Continuous Shooting

Approx. 70 min.

Dimensions and Weight - Dimensions (W x H x D)

112.6 x 69.9 x 45.3 mm / 4.4 x 2.8 x 1.8 in.

Dimensions and Weight - Weight

422g / 14.9 oz. (including battery and SD card), 370g / 13.0 oz. (camera body only)

Operating Environment - Operating Temperature

32 – 104 °F / 0 – +40 °C

Operating Environment - Operating Humidity

85% or less (non-condensing)

Supplied Accessories

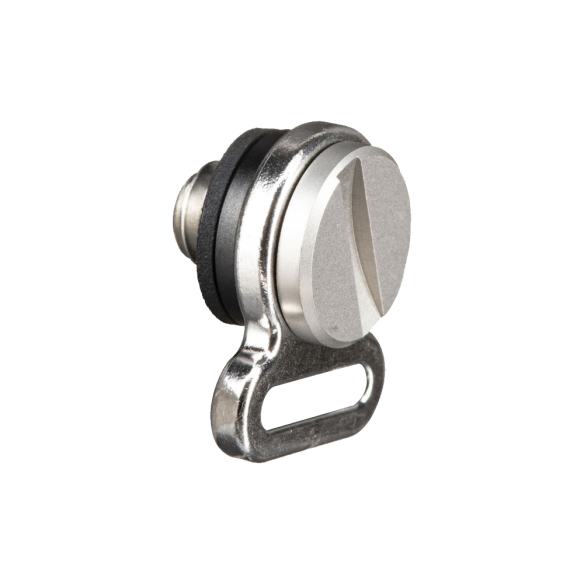

Li-ion Battery Pack BP-51, Strap, STRAP HOLDER SH-11, USB AC ADAPTER UAC-11, USB CABLE (A-C) SUC-11, HOT SHOE UNIT HU-11, Body Cap, Instruction Manual

Optional Accessories

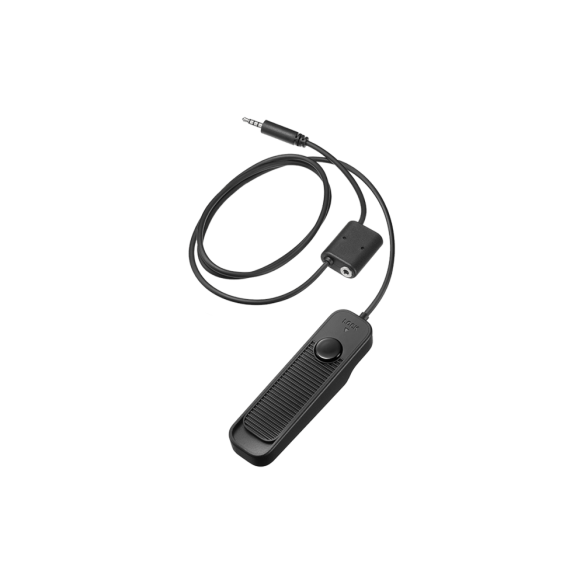

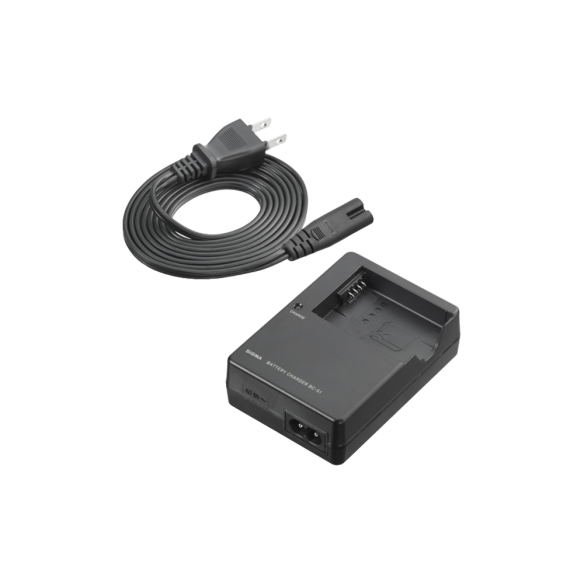

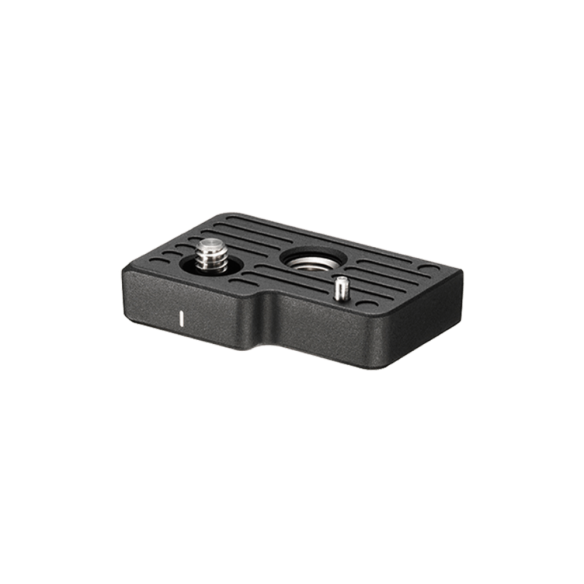

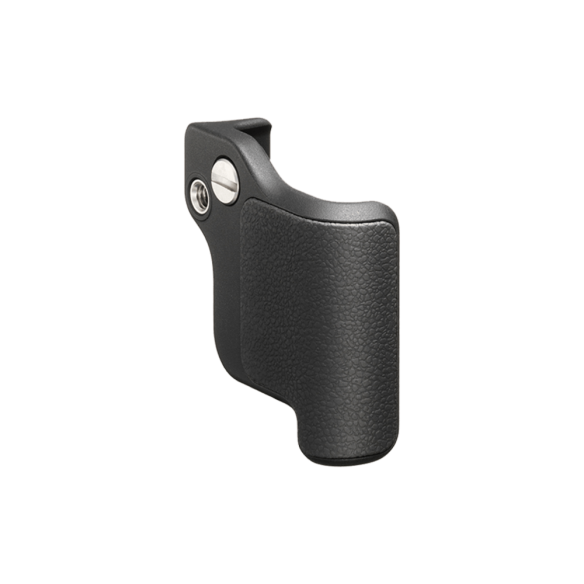

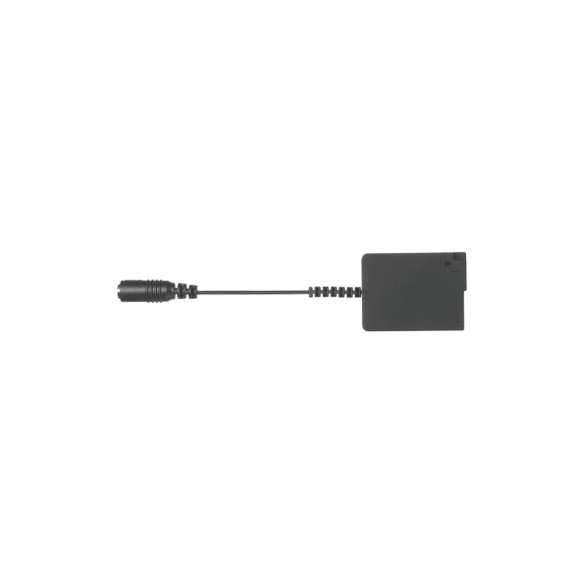

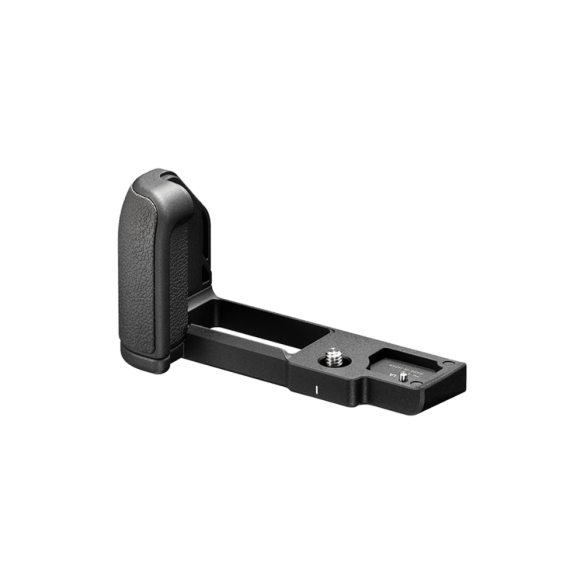

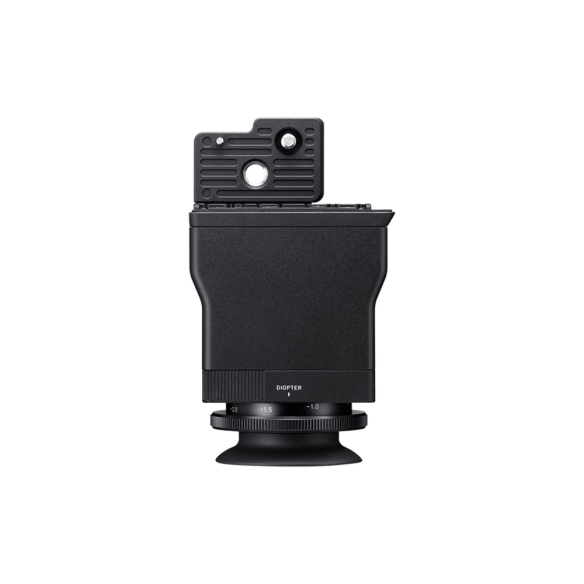

HAND GRIP HG-11, LARGE HAND GRIP HG-21, LCD VIEWFINDER LVF-11, ELECTRONIC VIEWFINDER EVF-11, BASE PLATE BPL-11, CABLE RELEASE, CR-41, BASE GRIP BG-11, DC CONNECTOR CN-21, BATTERY CHARGER BC-71, AC ADAPTER SAC-7P, STRAP HOLDER SH-11

Movie Recording Format - Camera Internal Record

Movie Format:
CinemaDNG (8 bit, 10 bit, 12 bit) / MOV: H.264 (ALL-I, GOP)

Audio Format:
Linear PCM (2 ch 48 kHz / 16 bit)

Record Format / Frame rate:
3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p
1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p, 119.88 p

Continuous Shooting Enable Time:
Up to 2 hours

Cinema DNG Memory Media Limitation:
SD Card (UHS-II): UHD 8 bit 25 p or less, FHD 12 bit 59.94 p or less
Portable SSD: UHD 12 bit 29.97 p or less, FHD 12 bit 100 p or less, FHD 8 bit 119.88 p or less

Movie Recording Format - HDMI External Output

Movie Format:
4:2:2 8 bit
12 bit RAW: External recorder record: ATOMOS Ninja V, ATOMOS Ninja V+, ATOMOS Shogun CONNECT, Blackmagic Video Assist 12G supported

Audio Format:
Linear PCM (2 ch 48 kHz/16 bit)

Record Format / Frame Rate:
4,096 x 2,160 (DCI 4K) / 24 p *Only for RAW output
3,840 x 2,160 (UHD 4K) / 23.98 p, 24 p, 25 p, 29.97 p
1,920 x 1,080 (FHD) / 23.98 p, 24 p, 25 p, 29.97 p, 48 p, 50 p, 59.94 p, 100 p, 119.88 p

Flash - Flash Mode

S-TTL Auto Exposure, Manual Flash, Wireless Flash, Multi Flash

Flash - Optional Functions

Red-eye Reduction, Slow Synchronization, Rear Curtain Synchronization

Flash - Flash Exposure Compensation

Max. ±3 EV in 1/3EV step increments

Flash - Flash Sync. Speed

Max. 1/30 sec.
* 1/15 sec. or less at 14 bit RAW

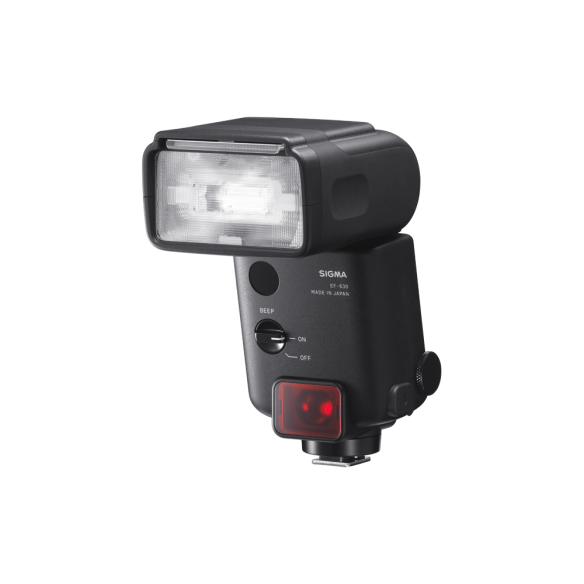

Flash - External Flash Support

Available when the HOT SHOE UNIT HU-11 (supplied with this product) is mounted.
* S-TTL, Wireless support, X-sync

Cloud Connection - Supported Models

ATOMOS Ninja V+*, ATOMOS Shogun CONNECT (*available when the ATOMOS CONNECT is mounted)

Director's Viewfinder - Supported cameras

ARRI:
ARRICAM / ARRIFLEX, ALEXA LF/ ALEXA Mini LF, ALEXA SXT, ALEXA Mini, AMIRA, ALEXA65, ALEXA XT

SONY:
VENICE

RED:
MONSTRO 8K, HELIUM 8K, DRAGON 6K, EPIC MX 5K, GEMINI 5K, KOMODO 6K

Director's Viewfinder - Frame Guide

1.33:1, 1.85:1, 2.39:1, Custom 1, Custom 2

Director's Viewfinder - Custom Frame

Input (Sensor Area, Aspect Ratio), Offset, Style (4 styles), Line (1 to 10 px), Color (White, Black, Red, Yellow, Green, Cyan, Blue, Magenta), Shading

Mount

L-Mount

Sensor Type

35mm full-frame (35.9mm x 23.9mm) Back-illuminated CMOS sensor

Monitor - Type / Coverage

TFT color LCD, Aspect Ratio 3:2, 3.15 type, Approx. 2.1M dots , Electrostatic capacitance system touch panel / Approx. 100% Coverage

Aspect Ratio

3:2

Color Space

sRGB, Adobe RGB

Exposure Control - Exposure Tool

Brightness Level Monitor (Waveform, Histogram ), Zebra Pattern, False Color (False Color, EL ZONE)

Interface - USB Terminal

USB3.1 GEN1 Type-C (supports Mass Storage, Video Class (UVC), Camera Control)

Flash - Built-in Flash

None

Exposure Control - Metering System

Evaluative, Spot, Center Weighted Average
