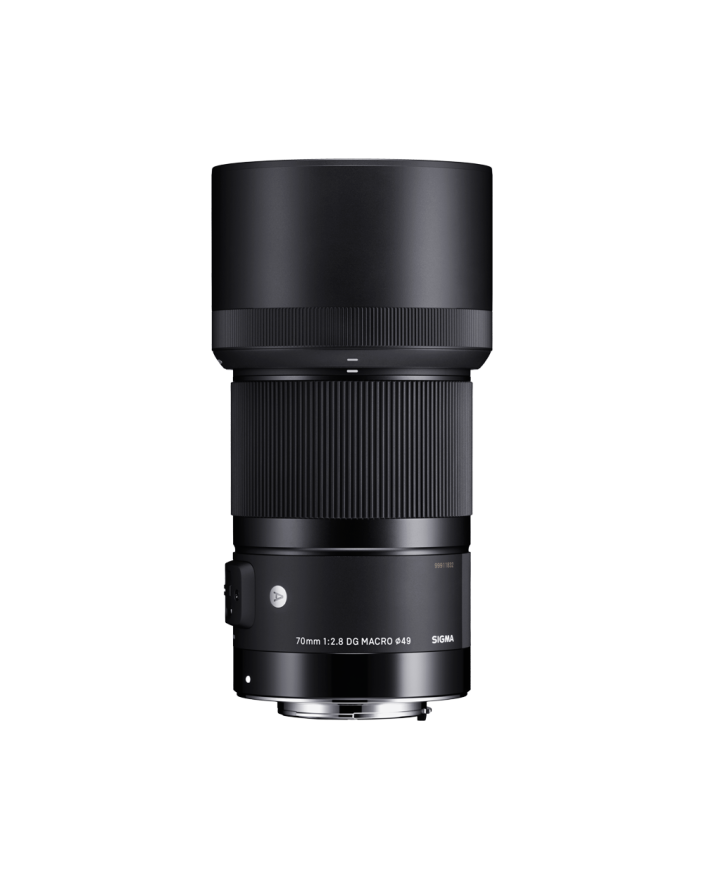

ART70mm F2.8 DG Macro
- Stunning resolution and clarity
- True 1:1 maximum magnification ratio
- Designed to prioritize optical performance
- Coreless DC motor enhances image quality
- Focus-by-wire for comfortable and precise focusing
- Full-time manual focus
- Smooth bokeh free of color streaking
- Super Multi-Layer Coating reduces flare and ghosting
- Exclusive low-dispersion glass
- Rounded 9-blade diaphragm
AWARDS
- Lucie Technical Best Special Purpose Lens 70mm F2.8 Macro Art 2018
- Resource 2018 Best Macro Lens Sigma 70mm F2.8 DG Art Imaging
Sony E-mount: 70.8mm x 131.8mm / 2.8 in. x 5.2 in.
SIGMA SA-mount: 70.8mm x 105.8mm / 2.8 in. x 4.2 in.
Sony E-mount: 570g / 20.1 oz.
SIGMA SA-mount: 515g / 18.2 oz.
LENS CONSTRUCTION
- FLD glass
- SLD glass
- Aspherical lens
MTF CHART
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens' performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
Spatial Frequency
S: Sagittal Line
M: Meridional Line
10lp/mm
30lp/mm
DIFFRACTION MTF
GEOMETRICAL MTF
Hyper Sonic Motor (HSM)
The Hyper Sonic Motor (HSM) uses ultrasonic waves to drive the autofocus mechanism. It features extremely quiet operation, high torque, and excellent focusing speed.
Exclusive low-dispersion glass
Careful arrangement of exclusive low-dispersion glass elements gives SIGMA lenses superlative image rendition untarnished by residual chromatic aberration.
Mount with Dust and Splash Resistant Structure
The lens mount incorporates rubber sealing to protect the mount from dust and water drops.
Other
- Rounded diaphragm
- Compatible with SIGMA TELECONVERTER TC-1411, TC-2011 (L-Mount only)
- High-precision, durable brass bayonet mount
- Designed to minimize flare and ghosting
