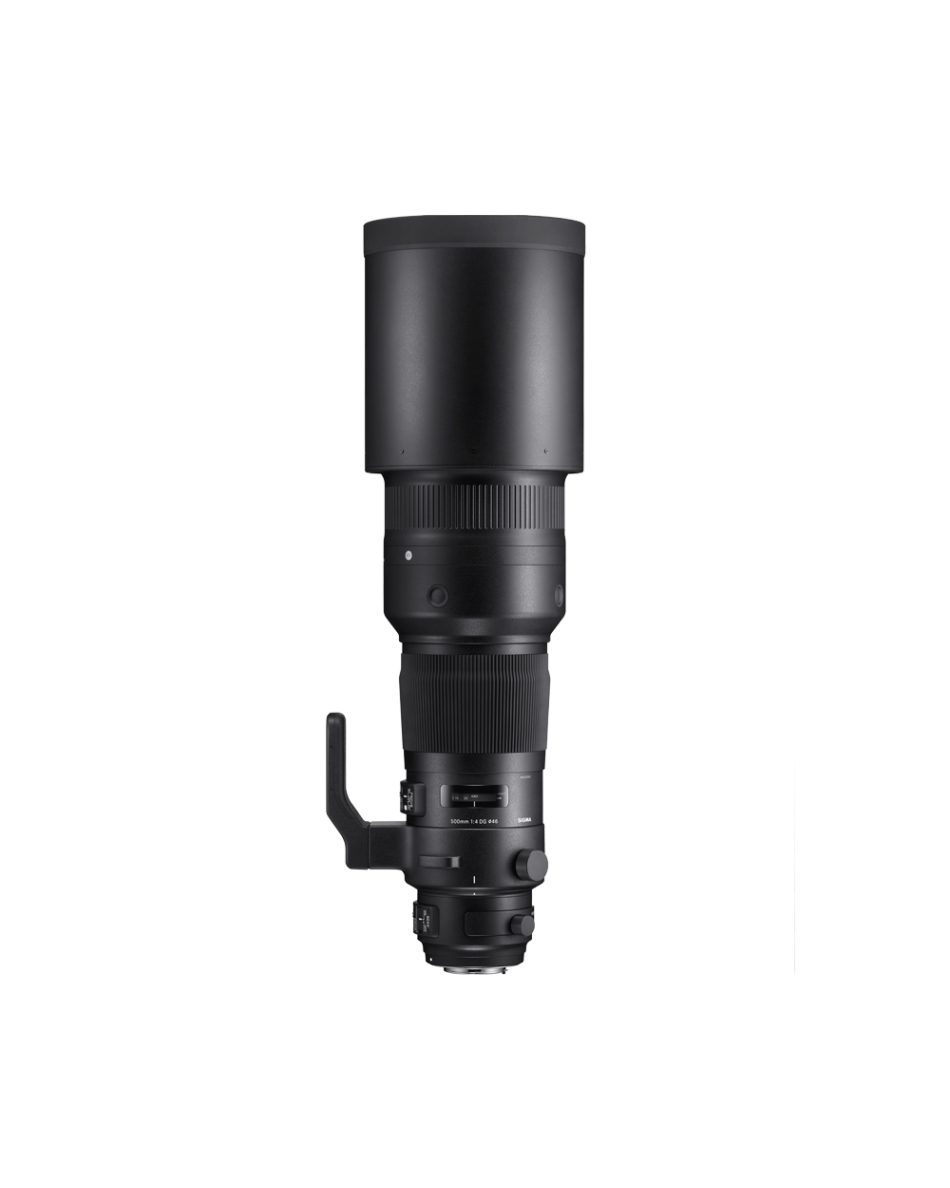

SPORTS500mm F4 DG OS HSM
- Top-level optical performance and functionality
- Magnesium alloy barrel
- HSM (Hyper Sonic Motor) delivers high AF speed
- Optical Stabilizer (OS) system
- Enhanced dust and splash resistant structure
- Water- and oil-repellent front coating
- Exclusive low-dispersion glass
- Tripod socket with 90° click stops
- AF function switch with preset AF modes
- Focus limiter, OS mode switch, focus mode switch
- Carbon fiber lens hood
AWARDS
- PCMag: 500mm F4 Sport 2017
LENS CONSTRUCTION
- FLD glass
- SLD glass
MTF CHART
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens' performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
Spatial Frequency
S: Sagittal Line
M: Meridional Line
10lp/mm
30lp/mm
DIFFRACTION MTF
GEOMETRICAL MTF
