ART35mm F1.2 DG DN
- Sigma's first F1.2 large-diameter prime
- Enables astounding resolution and bokeh
- 3 SLD elements and 3 aspherical lenses
- Aperture ring with de-click function
- Large hyper sonic motor (HSM) for fast AF
- Dust and splash resistant structure
- Water and oil repellent coating
- 11-blade rounded diaphragm
- Designed to minimize flare and ghosting
- Compatible with Lens Aberration Correction
Sony E-mount: 87.8mm x 138.2mm / 3.4 in. x 5.4 in.
Sony E-mount: 1,080g / 38.1 oz.
Sigma’s First F1.2 maximum aperture, large-diameter prime lens
The Art line in the age of mirrorless cameras pursues ultimate performance as a large-diameter lens with a focal length of 35mm and also achieves a maximum aperture of F1.2. Three SLD glass elements and three aspherical lenses including a double-sided aspherical lens are optimally arranged in a lens construction of 17 elements in 12 groups. In addition to the optical design that makes use of the characteristic of the short flange focal length, it effectively takes advantage of the correction function inside the camera to correct distortion and peripheral illumination. Various aberrations that are difficult to correct by post-processing, such as sagittal coma flare, are thoroughly corrected by the compilation of the optical design technologies that Sigma has cultivated, achieving an overwhelming resolution that can resolve over 50 million pixels.
High operability that supports various shooting situations in both still and video
In autofocus photography, comfortable shooting for a F1.2 large-diameter lens is achieved by the large hyper sonic motor (HSM) that gets desired torque required to drive the focus lens group. In manual focus photography, the focus ring driven by the focus-by-wire system with the optimized torque setting responds to fine operations of the photographer.
The ① aperture ring is also mounted with a de-click function for removing clicks by the ③ Click ON/OFF Switch, enabling seamless operations that are especially useful such as during video shooting. Furthermore, the ② AFL button which can be assigned with various functions widens the range of operations available on the lens.
Substantial functions enable user confidence, even in tough environments
The lens features the dust- and splash-proof structure additionally with the water- and oil-repellent coating on the frontmost surface of the lens, which also supports shooting in various environments.
Designed to minimize flare and ghosting
From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as back lighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in back light conditions.
High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.
Large HSM delivers highly responsive autofocus
The large hypersonic motor (HSM) delivers ample torque to the focusing group for outstanding speed, ensuring exceptionally stable performance even at lower speeds. Along with the optimized AF algorithm, this feature delivers fast autofocus photography.

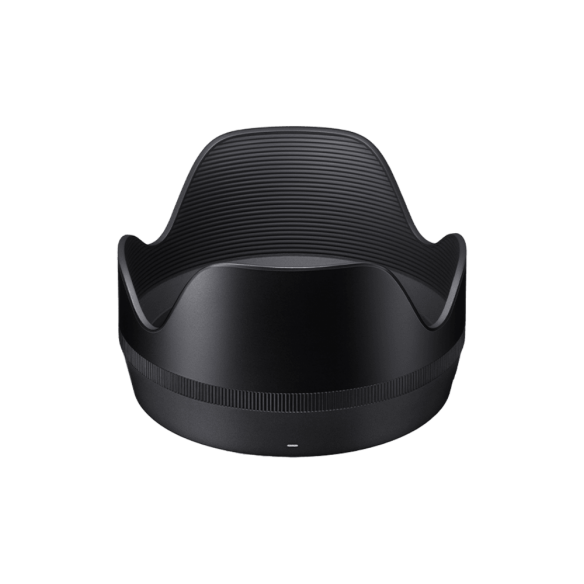

Hood with lock
Features a hood with lock to prevent dropping the hood.
Rounded diaphragm (11-blade)
The 11-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.
LENS CONSTRUCTION
- SLD Glass
- Aspherical Lens
MTF CHART
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens' performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
Spatial Frequency
S: Sagittal Line
M: Meridional Line
10lp/mm
30lp/mm
DIFFRACTION MTF
GEOMETRICAL MTF
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON' (AUTO).
Exclusive low-dispersion glass
Careful arrangement of exclusive low-dispersion glass elements gives Sigma lenses superlative image rendition untarnished by residual chromatic aberration.
Water and oil repellent coating
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
Aperture ring
Aperture ring, designed to help users work intuitively.
Aperture ring click switch
Offers a de-click function for removing clicks by the aperture ring click switch, enabling seamless operations that are especially useful such as during video shooting.
AFL button
The AFL button can be assigned with various functions widens the range of operations available on the lens.
Dust and Splash Resistant Structure
This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.
*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.
Other
- Rounded diaphragm
- Compatible with high-speed autofocus
- High-precision, durable brass bayonet mount
- Designed to minimize flare and ghosting
- Every single lens undergoes Sigma's proprietary MTF measuring system
- Mount Conversion Service available
- "Made in Aizu, Japan" craftsmanship
