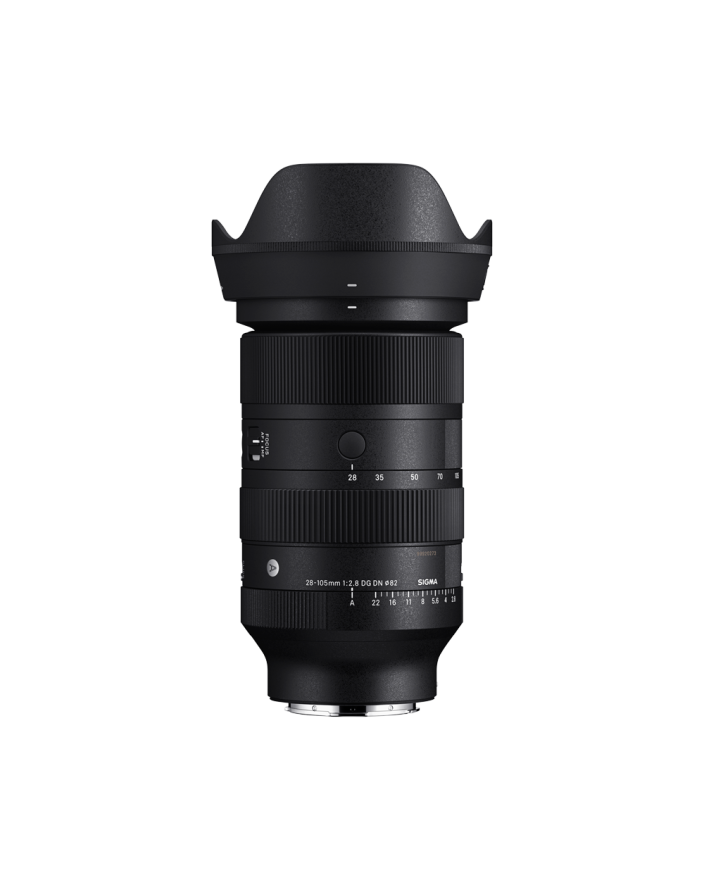

ART28-105mm F2.8 DG DN
- Wide range including popular focal lengths for portraits
- F2.8 maximum aperture throughout entire range
- 1:3.1 reproduction ratio for detailed close-ups
- Uncompromising optical performance
- Dust and splash-resistant structure
- HLA (High-response Linear Actuator) focus motor
- Water and oil repellent front coating
- Designed to minimize focus breathing
- Designed to minimize flare and ghosting
- Magnesium alloy components reduce weight
- Equipped with two AFL buttons
- Aperture ring with de-click function

Sony E-mount: 87.8mm x 159.9mm / 3.5 in. x 6.3 in.
Sony E-mount: 990g / 34.9 oz.
Constant F2.8 aperture across a versatile 28-105mm zoom
Many conventional zoom lenses which have a reach up to 105mm do not offer a constant F2.8 aperture, usually dropping to F4 at the long end. But the Sigma 28-105mm F2.8 DG DN | Art delivers the same impressive light-gathering and depth-of-field benefits across the whole focal range. The lens offers all of this along with extremely high optical performance thanks to the thorough suppression of optical aberrations within each lens group. And with its outstanding close-focusing capability when zoomed in, macro-style results are also possible.
A versatile F2.8 aperture perfect for portraits and low light
With its fast aperture across the whole focal range, the Sigma 28-105mm F2.8 DG DN | Art is a true workhorse lens that can be used for almost any type of photography. Scenic photographers can shoot wide-angle landscapes, using the F2.8 aperture for low-light scenes and twilight urban views, while the middle focal lengths tackle dimly lit documentary and street subjects, allowing shutter speeds one stop faster than comparable lenses. At the long end, popular portrait focal lengths from 85mm and 105mm, combined with the F2.8 maximum aperture, produce a shallow depth-of-field that will isolate a subject impressively against large and beautiful bokeh.


Fill the frame with superb close-up performance
Achieving a minimum focus distance of just 40cm across its entire zoom range, the Sigma 28-105mm F2.8 DG DN | Art can get you closer to your subject, filling the frame with detail and texture. At its 105mm setting, this creates a very useful maximum magnification ratio of 1:3.1 for powerful macro-style results.
Superior optical performance across the full zoom and focus range
The Sigma 28-105mm F2.8 DG DN | Art operates without compromise, suppressing aberrations very effectively within each lens group, and throughout the entire zoom and focal range. This ensures the lens has a consistent performance even with such a long zoom range. This is thanks to the lens’s premium optical design, which includes two FLD, one SLD and five aspherical elements, the first grouping of which uses a large-diameter 66.4mm element that is extremely difficult to produce and only available thanks to Sigma’s advanced manufacturing technology at its sole production base in Aizu, Japan.


Designed to minimize flare and ghosting
Using advanced simulation technology, flare and ghosting have been largely eliminated, ensuring that the lens renders rich, high-contrast results in all conditions. In addition, Sigma’s Nano Porous Coating and Super Multi-Layer Coating have been applied to further suppress flare and ghosting.


Minimal focus breathing
Vital for film-makers who demand consistent framing, the lens has been designed to keep focus breathing to a minimum. This ensures that any changes to the angle-of-view due to focus shift are minimized across the entire zoom range, ensuring natural-looking focus pulls when recording video, and easier image alignment when focus stacking.
Superb portability thanks to a weight of less than 1kg
Standard zooms should be small and light enough for all-day hand-held shooting, so the Sigma 28-105mm F2.8 DG DN | Art has been designed with portability in mind. It combines five aspherical elements effectively in place to shorten the overall length, and a magnesium-alloy construction around the mount, keeping the weight of the lens to less than 1kg. This ensures the lens has superb portability similar to shorter standard zoom lenses, while providing a wider zoom range.


Excellent optical performance in a streamlined body
By using five aspherical elements in its optical construction, Sigma has succeeded in significantly shortening the lens’s total length without any compromise to sharpness and image quality. This advanced configuration was only made possible by continuous technological innovation and cutting-edge manufacturing processes at Sigma’s sole production base in Aizu, Japan.


Smarter design means lower weight
Constant F2.8 zoom lenses can be heavy, but by optimising the design and materials of each part of the Sigma 28-105mm F2.8 DG DN | Art, Sigma has achieved a remarkably light weight of less than 1kg. The use of magnesium-alloy rather than aluminum for the lens barrel around the mount has reduced the weight of these parts alone by two-thirds, while ensuring rigidity.
Professional features, fast AF and excellent build quality
In addition to high-speed AF delivered by its linear motor HLA (High-response Linear Actuator), the Sigma 28-105mm F2.8 DG DN | Art packs in a range of features that help deliver the best possible results in every shooting situation. These include a dust- and splash-resistant structure and water- and oil-repellent coating, as well as a zoom lock switch, a de-clickable aperture ring, AFL buttons and the focus ring for easier handling including shooting with MF.


A linear motor HLA for rapid and accurate AF
The lens incorporates a linear motor HLA (High-response Linear Actuator) that delivers a maximum drive speed, ensuring responsive, precise and smooth AF. With its high level of quietness, the motor also provides noise-free video capability.
An aperture ring for improved ergonomics
For quick changes to exposure, or a more traditional way of shooting, the lens is equipped with a dedicated aperture ring, allowing the user to change aperture via the lens if preferred. An aperture ring click switch is a useful tool for film-makers, and a lock switch helps ensure the aperture ring is not knocked out of its setting accidentally.


Two AFL buttons* for added customization
Located on the side and on top of the barrel, two customizable AFL buttons can easily be reached in either horizontal or vertical shooting positions, ensuring more ergonomic handling.
* Assignment of functions is limited to supported cameras and assignable functions vary depending on the camera.


Zoom lock switch to keep the zoom ring secure
The lens is equipped with a zoom lock switch that holds the zoom mechanism in place at its wide end, preventing it from extending unintentionally under its own weight when carried. The lock can be released by the switch, or by turning the zoom ring for a faster and more flexible workflow.


Weather-resistant structure for challenging conditions
The lens has a dust- and splash-resistant structure* that keeps it free of contaminants in harsh outdoor environments. The front element also features a water- and oil-repellent coating that helps keep it clean in adverse shooting conditions.
* The structure is designed to be dust- and splash-resistant, but not waterproof. Be careful not to bring the lens in contact with a large amount of water. Water inside the lens may cause major damage and even render the lens unrepairable.


Petal-type hood
A dedicated petal-shaped hood is supplied. A locking mechanism is provided for secure attachment.


LENS CONSTRUCTION


- FLD Glass
- SLD Glass
- Aspherical Lens
MTF CHART
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens' performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
Spatial Frequency
S: Sagittal Line
M: Meridional Line
10lp/mm




30lp/mm




DIFFRACTION MTF 28MM


DIFFRACTION MTF 105MM


GEOMETRICAL MTF 28mm


GEOMETRICAL MTF 105mm


Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON' (AUTO).
HLA (High-response Linear Actuator)
HLA is Sigma's proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Super Multi-Layer Coating
Sigma's own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma's Super Multi-Layer Coating is highly effective, assuring images of outstanding contrast.
Nano Porous Coating
NPC (Nano Porous Coating) incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.
Water and oil repellent coating
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and grease from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
Aperture ring
Aperture ring, designed to help users work intuitively.
Aperture ring click switch
Offers a de-click function for removing clicks by the aperture ring click switch, enabling seamless operations that are especially useful such as during video shooting.
Aperture ring lock switch
A ring lock system to prevent from unintended movement of the aperture ring during shooting.
AFL button
The AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Mode Switch
Using this switch, it is possible to switch the focus mode between AF and MF.
Linear focus / Non-linear focus (for L-Mount only)
A focus movement method of interchangeable lenses for mirrorless cameras in relation to the rotational angle of the focus ring during manual focusing. With "non-linear focus" the amount of focal point movement varies depending on the focus ring rotational speed. With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.
Dust and Splash Resistant Structure
This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, focus ring/zoom ring, controls, and cover connection.
*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.
Zoom lock switch (wide end only)
The zoom lock switch fixes the zoom ring at the widest end, preventing it from rotating and causing the lens barrel to extend under its own weight during transportation.
Others
- Rounded diaphragm
- Compatible with high-speed autofocus
- Compatible with AF Assist (Sony E-mount only)
- Compatible with SIGMA USB DOCK UD-11 (sold separately / L-Mount only)
- High-precision, durable brass bayonet mount
- Support DMF and AF+MF
- Designed to minimize flare and ghosting
- Every single lens undergoes SIGMA's proprietary MTF measuring system
- Mount Conversion Service available
- "Made in Aizu, Japan" craftsmanship







Dust and splash-resistant structure
A highly-effective dust and splash resistant structure is built into the lens barrel, with special sealing at the mount connection, focus and zoom rings, and other lens controls.




TSC (Thermally Stable Composite)
TSC is a type of polycarbonate with a thermal expansion rate similar to that of aluminum. By using a combination of TSC and aluminum parts, lenses can be considerably more lightweight without sacrificing durability and operability.
High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.




Versatile F2.8 maximum aperture
The maximum aperture of F2.8 provides outstanding versatility in a zoom lens, offering excellent low-light performance, and the ability to create beautiful bokeh and subject separation.
Manual Aperture Ring
A manual control ring allows the user to change aperture via the lens for a more direct, tactile approach.




Click / De-Click switch
A click / de-click switch allows the user to select their preference for aperture control, with either smooth transitions or marked click stops.
