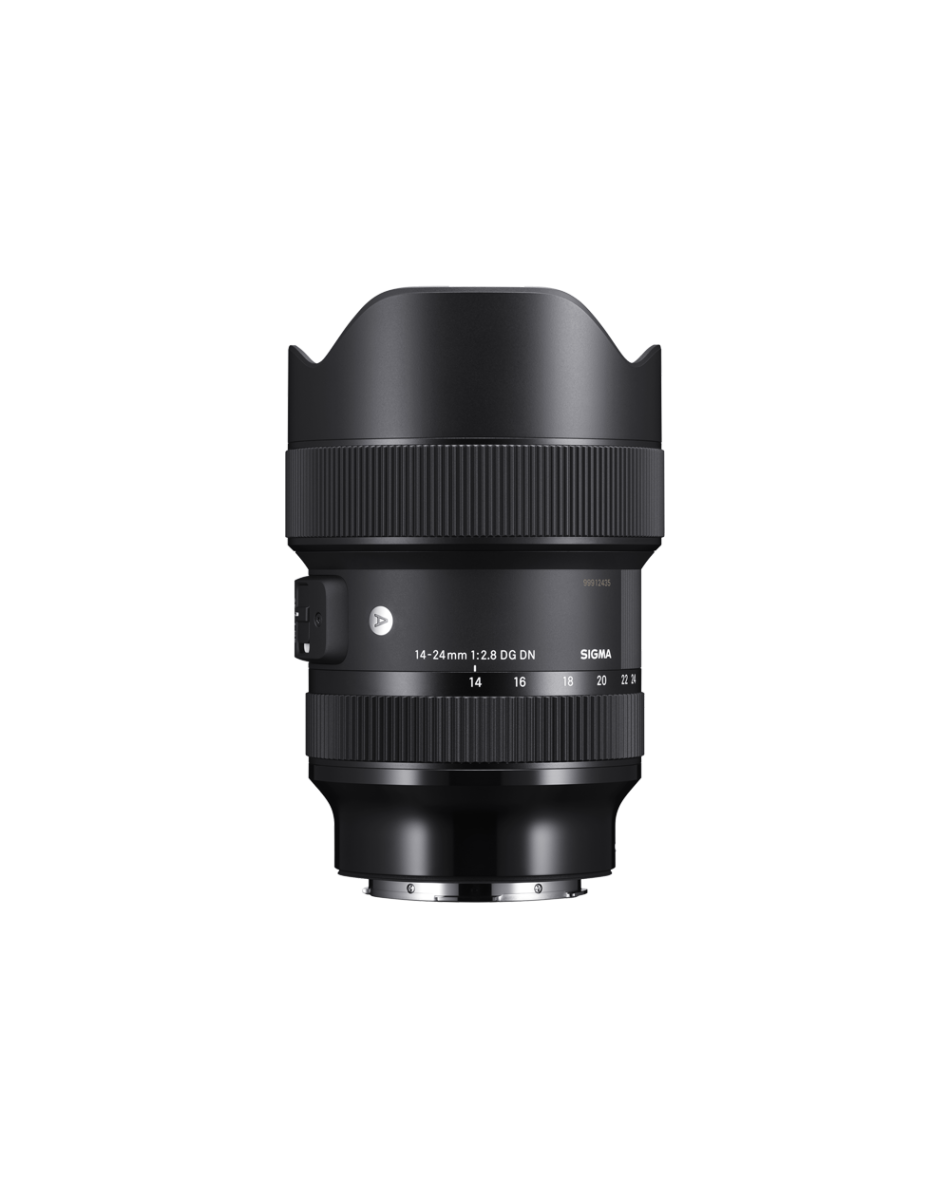

ART14-24mm F2.8 DG DN
- Unprecedented high-resolution image quality
- Uniform rendering performance to the edges
- Features exclusive low dispersion glass elements
- Stepping motor for high speed, quiet AF
- Dust and splash resistant structure
- Water and oil repellent coating
- Rear filter holder as a standard accessory
- NPC (Nano Porous Coating)
- Designed to minimize flare and ghosting
AWARDS
- BEST MIRRORLESS WIDE ANGLE ZOOM LENS 2020
- BEST WIDE ANGLE ZOOM LENS 2020-2021-SIGMA 14-24mm F2.8 DG DN ART EISA
Sony E-mount: 85.0mm x 133.0mm / 3.3 in. x 5.2 in.
Sony E-mount: 795g / 28.0 oz.
High-resolution image quality developed with exclusive low dispersion glass elements and NPC (Nano Porous Coating)
One FLD glass and five SLD glass elements are appropriately arranged to suppress chromatic aberration to the edge of the frame. Three aspherical lenses, including a large-diameter aspherical lens at the foremost surface, are used to effectively minimize coma flare, etc., thereby achieving mind-blowing resolution.
Sigma's unique coating technology Nano Porous Coating
The super multi-layer coating is combined with Sigma’s unique coating technology "NPC (Nano Porous Coating)". The lens has been designed to be less susceptible to strong incident light such as backlight.
"NPC (Nano Porous Coating)" incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.
Substantial functions enable user confidence, even in tough environments
Incorporating a stepping motor enables the high speed, quiet AF drive. Shooting is comfortable even in target AF such as Face/Eye Detection AF and during video shooting. The AFL button which can be assigned with various functions widens the range of operations available on the lens. Furthermore, the lens features a dust and splash resistant structure along with a water- and oil-repellent coating on the frontmost surface of the lens, which further supports shooting in various environments.
*1 Function available on supported cameras only. Available functions may vary depending on the camera model.
*2 Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
Rear filter holder as a standard accessory
The lens comes with a rear filter holder equipped with a fall prevention lock for attaching sheet type rear filters for shooting starry skies.
Designed to minimize flare and ghosting
From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma's Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.
Rounded diaphragm
The 11-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
Note:
- Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
- On cameras where lens aberration correction is controlled with "ON" or "OFF" in the camera menu, please set all aberration correction functions to "ON" (AUTO).
High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.
LENS CONSTRUCTION
- FLD Glass
- SLD Glass
- Aspherical Lens
MTF CHART
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens' performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
Spatial Frequency
S: Sagittal Line
M: Meridional Line
10lp/mm
30lp/mm
DIFFRACTION MTF 14MM
DIFFRACTION MTF 24MM
GEOMETRICAL MTF 14mm
GEOMETRICAL MTF 24mm
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON' (AUTO).
Exclusive low-dispersion glass
Careful arrangement of exclusive low-dispersion glass elements gives SIGMA lenses superlative image rendition untarnished by residual chromatic aberration.
Nano Porous Coating
NPC (Nano Porous Coating) incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.
Water and oil repellent coating
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and grease from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
The AFL button can be assigned with various functions widens the range of operations available on the lens.
Rear filter holder
The rear filter holder allows the attachment of a sheet-type filter to the rear part of the lens. Trace the shape on a sheet filter using the guide plate and cut it out for use.
Focus Mode Switch
Using this switch, it is possible to switch the focus mode between AF and MF.
Linear focus / Non-linear focus (for L-Mount only)
A focus movement method of interchangeable lenses for mirrorless cameras in relation to the rotational angle of the focus ring during manual focusing. With "non-linear focus" the amount of focal point movement varies depending on the focus ring rotational speed. With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.
Dust and Splash Resistant Structure
This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.
*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.
Stepping Motor
The lens is capable of smooth, quiet and high-speed AF made possible by a stepping motor, as well as supports Face/Eye Detection AF and video AF.
Others
- Rounded diaphragm
- Compatible with high-speed autofocus
- Compatible with AF Assist (Sony E-mount only)
- Compatible with SIGMA USB DOCK UD-11 (sold separately / L-Mount only)
- High-precision, durable brass bayonet mount
- Designed to minimize flare and ghosting
- Every single lens undergoes SIGMA's proprietary MTF measuring system
- Magnetic metal lens cap
- Mount Conversion Service available
- "Made in Aizu, Japan" craftsmanship
Dust and splash-resistant structure (SKU#213)
A highly-effective dust and splash resistant structure is built into the lens barrel, with special sealing at the mount connection, focus and/or zoom rings, and other lens controls.
High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.
Versatile F2.8 maximum aperture
The maximum aperture of F2.8 provides outstanding versatility in a zoom lens, offering excellent low-light performance, and the ability to create beautiful bokeh and subject separation.
Rear Filter Holder
The Rear Filter Holder can be fitted with comercially-available or DIY sheet-type filters for various effects. A template is included with the lens.
